Data Model Guide

This guide explains how Lynx is structured so you can navigate the APIs, interpret responses, and understand how objects relate to each other.

A Client Organization has:

Products, a Program (card program structure), Card Packages, and Members
A Member is enrolled in one or more Member Products, which create Member Accounts
A Member can have one or more Cards and linked External Accounts
Transactions, Orders, Claims, etc are events that occur against member accounts

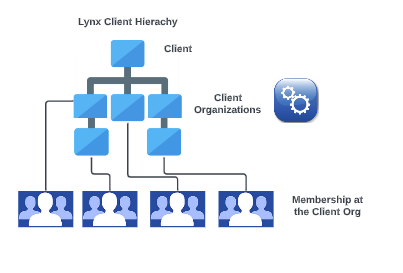

Core Objects

Client

The top-level tenant in Lynx. Defines the banking partner relationship and base platform configuration.

Lynx creates the Client during initial contract setup
You will not interact with the Client object directly via API
All Client Organizations belong to a single Client

Client Organization (clientOrg)

The operational entity where members are enrolled, products are configured, and cards are issued. This is the primary object you interact with.

For single-program clients: Lynx provisions one Client Organization during implementation. You enroll members into this org.

For multi-tenant clients (TPAs, platforms): Lynx provisions a parent Client Organization. You create child Client Organizations via API, one per employer group or sub-client.

Field	Description
name	Unique identifier for the org (e.g., "Health_Plan_ABC")
status	Current state: New, App_Approved, Active, Suspended, Terminated
clientOrgParent	Reference to parent org (for child orgs in multi-tenant setup)
addresses	Business address
clientOrgContacts	Administrative contact information
clientOrgProducts	Products enabled for this org

Child orgs:

Inherit the parent's Program (card program structure)
Can subscribe to a subset of parent's available products
Can have their own card package or inherit parent's
Are isolated from sibling orgs (Employer A cannot see Employer B's members)

Product

A benefit type that members can be enrolled into. Each product has its own enrollment requirements, funding model, and transaction behaviors.

Member-Owned Products

Product	Description
HSA_01	Health Savings Account — member-owned, KYC required, IRS reporting

Plan-Owned Products

Product	Description
FSA	Flexible Spending Account — healthcare expenses
LPFSA	Limited Purpose FSA — dental/vision only
HRA	Health Reimbursement Arrangement
ICHRA_PREM_ONLY	Individual Coverage HRA — premium payments only
ICHRA_PREM_PLUS	Individual Coverage HRA — premium + qualified expenses
OTC	Over-the-counter benefits (various configurations)
FOOD	Healthy food / grocery allowance
REWARDS	Rewards and incentives
INCENTIVE	Incentive programs

Product Configuration

Each product has configuration that determines:

Required enrollment fields
Whether KYC is triggered
Funding model (Good Faith, PBP, Member-Funded)
Whether election amounts are required
IRS contribution limits (for FSA, LPFSA, HSA)

Products are enabled at the Client Org level. A Client Org can have multiple products enabled (e.g., FSA + LPFSA + HRA).

Member

An individual enrolled in a Client Organization within the Lynx system.

Field	Description
clientMemberId	Your unique identifier for this member
clientOrgName	The Client Org this member belongs to
memberDetails (object)	Demographic Information for the member (firstName, lastName, DOB etc)
addresses (object)	All associated addresses for a given member
phones (object)	All associated phone numbers for a given member
emails (object)	All associated e-mail addresses for a given member
status	NEW, ACTIVE

Member Status Lifecycle:

Status	Meaning
NEW	Enrollment submitted, KYC in progress (member-owned accounts only)
ACTIVE	Member record has been successfully created in Lynx system
INACTIVE	Member record is no longer active in Lynx system

For plan-owned accounts (no KYC), members typically move directly to ACTIVE.

Member Product

The association between a member and a product. Created when you enroll a member into a product.

Key Fields	Description
product	The product (HSA, FSA, OTC, etc.)
effectiveDate	When the product becomes active for this member
expirationDate	When the product is no longer effective for member
status	NEW, App_Approved, Account_Active, Denied, PendingReview

Member Product Status Lifecycle:

Status	Meaning
NEW	Enrollment submitted, pending KYC (member-owned)
PendingReview	KYC has been submitted awaiting decision
App_Approved	KYC passed, account being created
Account_Active	Account is open and funded, member can transact
Denied	KYC failed

Note: A member can have multiple Member Products (e.g., HSA + FSA + OTC).

Member Account

The ledger that tracks a member's balance for a given product.

For member-owned accounts (HSA): The Member Account is a real custodial account in the member's name.
For plan-owned accounts (FSA, HRA, OTC, etc.): The Member Account is a sub-ledger within the Client Org's omnibus FBO account. The member sees "their" balance, but the actual funds are held in the FBO.

Member Card

A physical or virtual debit card issued to the member.

Key Fields	Description
cardProxy	Unique card identifier (used in API calls)
cardNumber	The actual card number (only accessible via VGS for security)
cardType	Physical or Virtual
status	New, Active, Frozen, Closed
expirationDate	Card expiration

Card Status Lifecycle:

Status	Meaning
New	Card created, not yet activated
Active	Card is active and can be used
Frozen	Temporarily frozen (member or admin action)
Closed	Permanently closed
Lost/Stolen	Card has been marked lost/stolen (final status)

Can a member have multiple cards?

Yes, depending on configuration:

A member might have one card that accesses multiple purses (OTC + Food + Rewards)
A member might have separate cards for incompatible products (FSA IIAS card + OTC filtered spend card)
A member can have both physical and virtual cards
A member can issue a dependent card (in dependents name) but same card information
